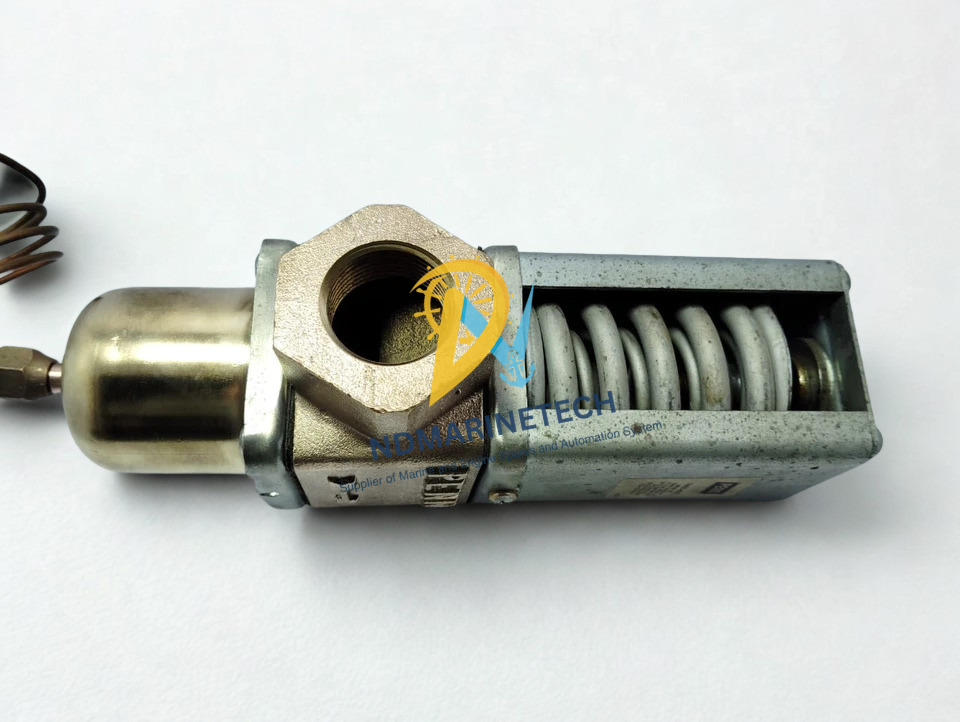

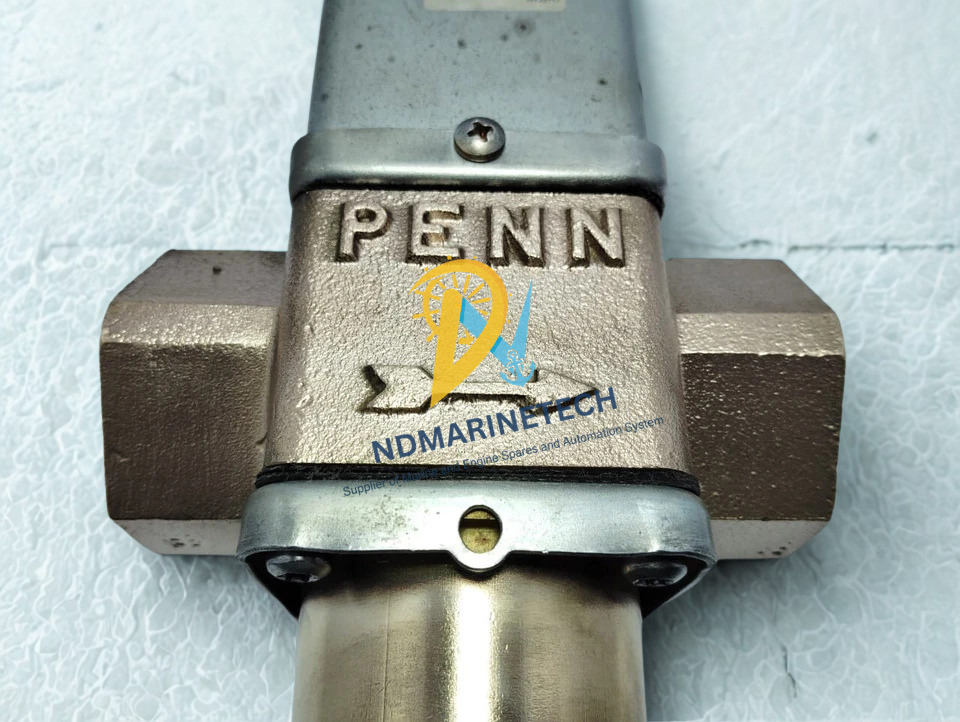

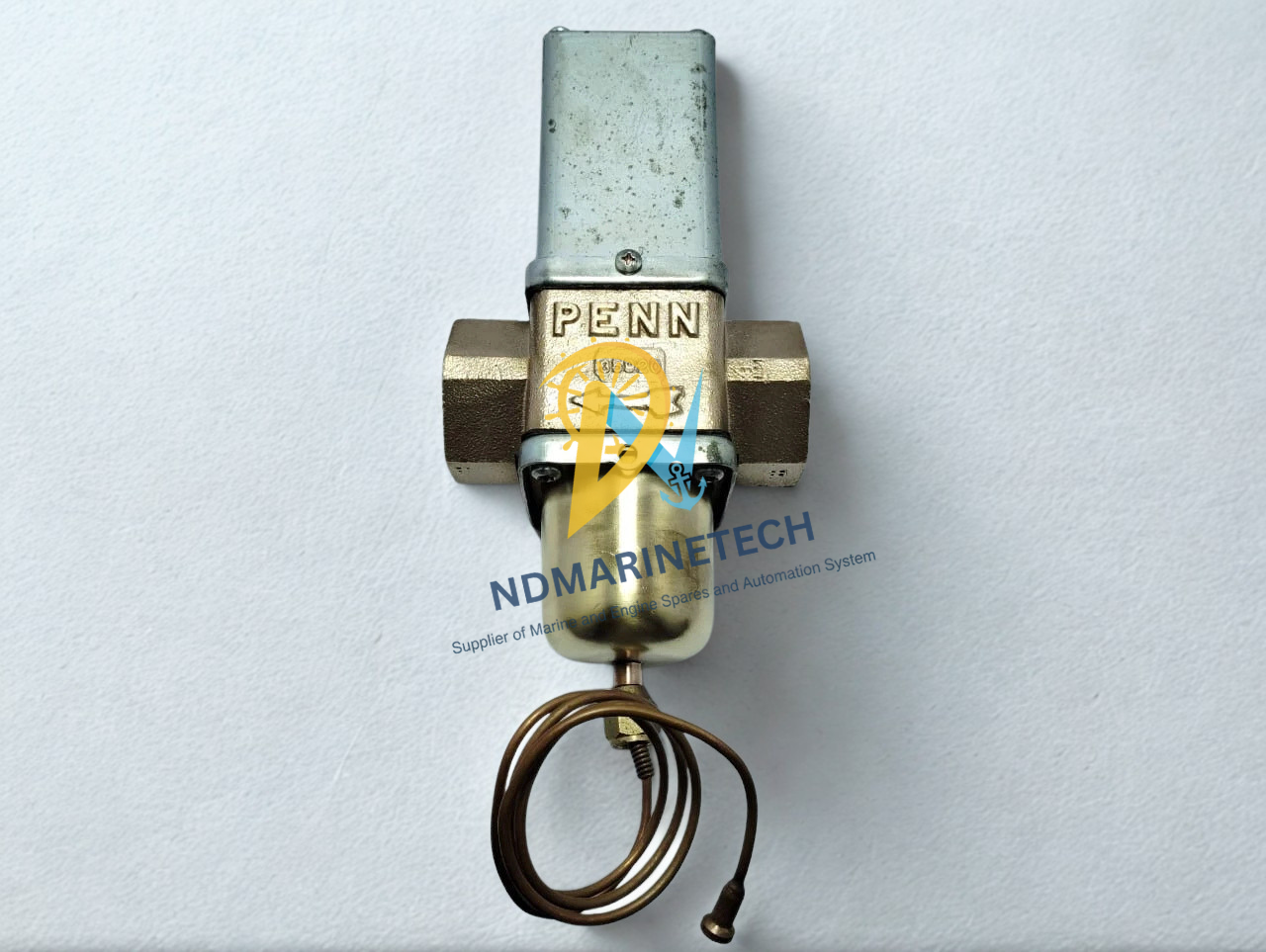

Johnson Penn Controls V46BD-9510 Water Regulating Valve

,

$ 91.59

Add to Wishlist
Add to Wishlist
Johnson Penn Controls V46BD-9510 Pressure Actuated Water Regulating Valve The Johnson Penn Controls V46BD-9510 is a pressure-actuated modulating valve that immediately senses variations in head pressure in a refrigerant circuit to modulate water flow to a condenser. This 1-inch direct-acting valve has been designed for demanding operating conditions and delivers optimum thermal efficiency in the condenser without wasting water. The V46BD-9510 is specifically designed for marine service with a sturdy bronze body and Monel/nickel-copper internal trim that is highly resistant to severe fluids and is the industry standard for open loop industrial refrigeration systems and saltwater cooled industrial refrigeration systems.   Product Model Details: Manufacturer: Johnson Controls (Penn Controls) Model / Part Number: V46BD-9510 MPN: V46BD-9510 Valve Size & Connection: 1 Inch (ISO 228-G1 Thread)   Specifications: V46BD-9510 Feature / Metric Specification Details Refrigerant Pressure Range 10 to 23 bar (145 to 333 PSI) Maximum Water Pressure 10 bar (145 PSI) Maximum Water Temperature 90°C (194°F) Capillary Length / Style 75 cm (0.75 m) with 1/4″ SAE Flare Nut Body Material Special High-Grade Bronze Internal Trim / Components Monel & Nickel-Copper Alloy (Saltwater Resistant) Bellows Construction Stainless Steel Gross Weight 4.00 kg Product Dimensions Height: 246 mm | Length: 124 mm   Features Saltwater & Corrosive Fluid Resistance: Constructed with high-grade bronze bodies and Monel internal trim to prevent premature galvanic corrosion in maritime or harsh industrial conditions. No Sliding Parts in Water Passages: Made without any close fitting or sliding parts in the water stream, greatly decreasing the potential for plugging from scale, silt, or marine particulates. High Flow Efficiency (Kv Value) Internal valve body design is optimized for a fast, quick opening characteristic to provide maximum cooling water flow precisely at the moment head pressure peaks. entirely Field-Serviceable: The valve is readily disassembled without disturbing pipe connections; all internal parts, seating and power elements are entirely replaceable.   Documentations Download Datasheet and Manual Pdf
Weight 600 kg
Dimensions 100 × 60 × 70 cm

Technical parameters

TECHNICAL DATA OF YX3 SERIES
NO. Type Output Speed Amps EFF. P.F. LRT LRA BDT Noise Voltage
kW r/min A % Cosφ RLT RLA RLT LwdB(A) V
1 YX3-80M1-2 0.75 2860 1.77 77.5 0.83 2.3 6.8 2.3 62 415
2 YX3-80M2-2 1.1 2880 2.43 82.8 0.83 2.3 7.3 2.3 62 415
3 YX3-90S-2 1.5 2890 3.23 84.1 0.84 2.3 7.6 2.3 67 415
4 YX3-90L-2 2.2 2890 4.59 85.6 0.85 2.3 7.8 2.3 67 415
5 YX3-100L-2 3 2890 6.04 86.7 0.87 2.3 8.1 2.3 74 415
6 YX3-112M-2 4 2910 7.88 87.6 0.88 2.3 8.3 2.3 77 415
7 YX3-132S1-2 5.5 2910 10.7 88.6 0.88 2.2 8 2.3 79 415
8 YX3-132S2-2 7.5 2910 14.3 89.5 0.89 2.2 7.8 2.3 79 415
9 YX3-160M1-2 11 2940 20.8 90.5 0.89 2.2 7.9 2.3 81 415
10 YX3-160M2-2 15 2940 28 91.3 0.89 2.2 8 2.3 81 415
11 YX3-160L-2 18.5 2940 34.4 91.8 0.89 2.2 8.1 2.3 81 415
12 YX3-180M-2 22 2950 40.7 92.2 0.89 2.2 8.2 2.3 83 415
13 YX3-200L1-2 30 2960 55.1 92.9 0.89 2.2 7.5 2.3 84 415
14 YX3-200L2-2 37 2960 67.7 93.3 0.89 2.2 7.5 2.3 84 415
15 YX3-225M-2 45 2960 82 93.7 0.89 2.2 7.6 2.3 86 415
16 YX3-250M-2 55 2970 100 94 0.89 2.2 7.6 2.3 89 415
17 YX3-280S-2 75 2970 135 94.6 0.89 2 6.9 2.3 91 415
18 YX3-280M-2 90 2970 162 95 0.89 2 7 2.3 91 415
19 YX3-315S-2 110 2970 195 95 0.9 2 7.1 2.2 92 415
20 YX3-315M-2 132 2970 234 95.4 0.9 2 7.1 2.2 92 415
21 YX3-315L1-2 160 2970 280.1 95.4 0.91 2 7.1 2.2 92 415
22 YX3-315L2-2 200 2970 350 95.4 0.91 2 7.1 2.2 92 415
23 YX3-355M-2 250 2980 436 95.8 0.91 2 7.1 2.2 100 415
24 YX3-355L-2 315 2980 549 95.8 0.91 2 7.1 2.2 100 415
25 YX3-80M1-4 0.55 1430 1.38 80.7 0.75 2.3 6.3 2.3 56 415
26 YX3-80M2-4 0.75 1430 1.85 82.3 0.75 2.3 6.5 2.3 56 415
27 YX3-90S-4 1.1 1430 2.66 83.8 0.75 2.3 6.6 2.3 59 415
28 YX3-90L-4 1.5 1430 3.58 85 0.75 2.3 6.9 2.3 59 415
29 YX3-100L1-4 2.2 1450 4.78 86.4 0.81 2.3 7.5 2.3 64 415
30 YX3-100L2-4 3 1450 6.36 87.4 0.82 2.3 7.6 2.3 64 415
31 YX3-112M-4 4 1450 8.39 88.3 0.82 2.3 7.7 2.3 65 415
32 YX3-132S-4 5.5 1450 11.4 89.2 0.82 2 7.5 2.3 71 415
33 YX3-132M-4 7.5 1450 15.2 90.1 0.83 2 7.4 2.3 71 415
34 YX3-160M-4 11 1470 21.6 91 0.85 2.2 7.5 2.3 73 415
35 YX3-160L-4 15 1470 28.9 91.8 0.86 2.2 7.5 2.3 73 415
36 YX3-180M-4 18.5 1470 35.4 92.2 0.86 2.2 7.7 2.3 76 415
37 YX3-180L-4 22 1470 42 92.6 0.86 2.2 7.8 2.3 76 415
38 YX3-200L-4 30 1470 56.9 93.2 0.86 2.2 7.2 2.3 76 415
39 YX3-225S-4 37 1480 69.8 93.6 0.86 2.2 7.3 2.3 78 415
40 YX3-225M-4 45 1480 84.7 93.9 0.86 2.2 7.4 2.3 78 415
41 YX3-250M-4 55 1480 103 94.2 0.86 2.2 7.4 2.3 79 415
42 YX3-280S-4 75 1480 137 94.7 0.88 2.2 6.7 2.3 80 415
43 YX3-280M-4 90 1480 164 95 0.88 2.2 6.9 2.3 80 415
44 YX3-315S-4 110 1480 199 95.4 0.88 2.2 6.9 2.2 88 415
45 YX3-315M-4 132 1480 239 95.4 0.88 2.2 6.9 2.2 88 415
46 YX3-315L1-4 160 1480 286 95.4 0.89 2.2 6.9 2.2 88 415
47 YX3-315L2-4 200 1480 358 95.4 0.89 2.2 6.9 2.2 88 415
48 YX3-355M-4 250 1490 441 95.8 0.9 2.2 6.9 2.2 95 415
49 YX3-355L-4 315 1490 555 95.8 0.9 2.2 6.9 2.2 95 415
50 YX3-90S-6 0.75 940 2.04 77.7 0.72 2.1 5.8 2.1 57 415
51 YX3-90L-6 1.1 940 2.87 79.9 0.73 2.1 5.9 2.1 57 415
52 YX3-100L-6 1.5 940 3.78 81.5 0.74 2.1 6 2.1 61 415
53 YX3-112M-6 2.2 950 5.42 83.4 0.74 2.1 6 2.1 65 415
54 YX3-132S-6 3 960 7.26 84.9 0.74 2 6.2 2.1 69 415
55 YX3-132M1-6 4 970 9.54 86.1 0.74 2 6.8 2.1 69 415
56 YX3-132M2-6 5.5 970 12.7 87.4 0.75 2 7.1 2.1 69 415
57 YX3-160M-6 7.5 970 16.4 89 0.78 2.1 6.7 2.1 73 415
58 YX3-160L-6 11 970 23.5 90 0.79 2.1 6.9 2.1 73 415
59 YX3-180L-6 15 980 30.9 91 0.81 2 7.2 2.1 73 415
60 YX3-200L1-6 18.5 980 37.9 91.5 0.81 2.1 7.2 2.1 73 415
61 YX3-200L2-6 22 980 44.3 92 0.82 2.1 7.3 2.1 73 415
62 YX3-225M-6 30 980 60.1 92.5 0.82 2 7.1 2.1 74 415
63 YX3-250M-6 37 980 72 93 0.84 2.1 7.1 2.1 76 680
64 YX3-280S-6 45 980 85 93.5 0.86 2.1 7.2 2 78 680
65 YX3-280M-6 55 980 104 93.8 0.86 2.1 7.2 2 78 415
66 YX3-315S-6 75 990 142 94.2 0.85 2 6.7 2 83 415
67 YX3-315M-6 90 990 172 94.5 0.84 2 6.7 2 83 415
68 YX3-315L1-6 110 990 207 95 0.85 2 6.7 2 83 415
69 YX3-315L2-6 132 990 245 95 0.86 2 6.7 2 83 415
70 YX3-355M1-6 160 990 294 95 0.87 2 6.7 2 85 415
71 YX3-355M2-6 200 990 368 95 0.87 2 6.7 2 85 415
72 YX3-355L-6 250 990 460 95 0.87 2 6.7 2 85 415

Installation dimension

Frame without feet and end-shield with flange(IM B35)
a
FRAME
SIZE		 POLES A A/2 B C D E F G H K M N P S T FLANGE AB AC AD HD L DH*
HOLES
80M 2 4 6 125 62.5 100 50 19 40 6 15.5 80 10 165 130 200 12 3.5 4 165 158 140 220 300 M6x16
90S 2 4 6 140 70 100 56 24 50 8 20 90 10 165 130 200 12 3.5 4 180 177 160 245 330 M8x19
90L 2 4 6 140 70 125 56 24 50 8 20 90 10 165 130 200 12 3.5 4 180 177 160 245 360 M8x19
100L 2 4 6 160 80 140 63 28 60 8 24 100 12 215 180 250 15 4 4 205 198 172 270 400 M10x22
112M 2 4 6 190 95 140 70 28 60 8 24 112 12 215 180 250 15 4 4 230 220 190 300 435 M10x22
132S 2 4 6 216 108 140 89 38 80 10 33 132 12 265 230 300 15 4 4 270 259 210 345 470 M12x28
132M 2 4 6 216 108 178 89 38 80 10 33 132 12 265 230 300 15 4 4 270 259 210 345 510 M12x28
160M 2 4 6 254 127 210 108 42 110 12 37 160 15 300 250 350 19 5 4 320 315 255 420 615 M16x36
160L 2 4 6 254 127 254 108 42 110 12 37 160 15 300 250 350 19 5 4 320 315 255 420 660 M16x36
180M 2 4 6 279 139.5 241 121 48 110 14 42.5 180 15 300 250 350 19 5 4 355 355 280 455 700 M16x36
180L 2 4 6 279 139.5 279 121 48 110 14 42.5 180 15 300 250 350 19 5 4 355 355 280 455 740 M16x36
200L 2 4 6 318 159 305 133 55 110 16 49 200 19 350 300 400 19 5 4 395 397 305 505 770 M20x42
225S 4 356 178 286 149 60 140 18 53 225 19 400 350 450 19 5 8 435 445 335 560 815 M20x42
225M 2 356 178 311 149 55 110 16 49 225 19 400 350 450 19 5 8 435 445 335 560 820 M20x42
4 6 356 178 311 149 60 140 18 53 225 19 400 350 450 19 5 8 435 445 335 560 845 M20x42
250M 2 406 203 349 168 60 140 18 53 250 24 500 450 550 19 5 8 490 485 370 615 920 M20x42
4 6 406 203 349 168 65 140 18 58 250 24 500 450 550 19 5 8 490 485 370 615 920 M20x42
280S 2 457 228.5 368 190 65 140 18 58 280 24 500 450 550 19 5 8 550 547 410 680 995 M20x42
4 6 457 228.5 368 190 75 140 20 67.5 280 24 500 450 550 19 5 8 550 547 410 680 995 M20x42
280M 2 457 228.5 419 190 65 140 18 58 280 24 500 450 550 19 5 8 550 547 410 680 1045 M20x42
4 6 457 228.5 419 190 75 140 20 67.5 280 24 500 450 550 19 5 8 550 547 410 680 1045 M20x42
315S 2 508 254 406 216 65 140 18 68 315 28 600 550 660 24 6 8 635 620 530 845 1185 M20x42
4 6 508 254 406 216 80 170 22 71 315 28 600 550 660 24 6 8 635 620 530 845 1220 M20x42
315M 2 508 254 457 216 65 140 18 58 315 28 600 550 660 24 6 8 635 620 330 845 1290 M20x42
4 6 508 254 457 216 80 170 22 71 315 28 600 550 660 24 6 8 635 620 530 845 1325 M20x42
315L 2 508 254 508 216 65 140 18 58 315 28 600 550 660 24 6 8 635 620 530 845 1290 M20x42
4 6 508 254 508 216 80 170 22 71 315 28 600 550 660 24 6 8 635 620 530 845 1325 M20x42
355M 2 610 305 560 254 75 140 20 67.5 355 28 740 680 800 24 6 8 730 698 655 1010 1500 M20x42
4 6 610 305 560 254 95 170 25 86 355 28 740 680 800 24 6 8 730 698 655 1010 1530 M20x42
355L 2 610 305 630 254 75 140 20 67.5 355 28 740 680 800 24 6 8 730 698 655 1010 1500 M20x42
4 6 610 305 630 254 95 170 25 86 355 28 740 680 800 24 6 8 730 698 655 1010 1530 M20x42

Bearing specifications

Frame size Poles Drive End Non-Drive End
International type International type
80 2-4 6204-2RZ 6204-2RZ
90 2-6 6205-2RZ 6205-2RZ
100 2-6 6206-2RZ 6206-2RZ
112 2-6 6306-2RZ 6306-2RZ
132 2-6 6308-2RZ 6308-2RZ
160 2-6 6309-2RZC3 6309-2RZC3
180 2-6 6311C3 6311C3
200 2-6 6312C3 6312C3
225 2-6 6313C3 6313C3
250 2-6 6314C3 6314C3
280 2 6314C3 6314C3
4-6 6317C3 6317C3
315 2 6317C3 6317C3
4-6 NU319C3 6319C3
355 2 6319C3 6319C3
4-6 NU322C3 NU322C3

The main dimensions of the box

Classified number Frame size Max.F.Amps Entery hole size
International standard
1 H80 2.6 2×M20×15
2 H90-100 6.8 2×M25×1.5
3 H112-132 15.4 2×M35×1.5
4 H160-180 42.5 2×M40×1.5
5 H200-225 84.2 2×M50×1.5
6 H250-280 166.6 2×M63×1.5
7 H315 358 2×M63×1.5
8 H355 546 2×M63×1.5
